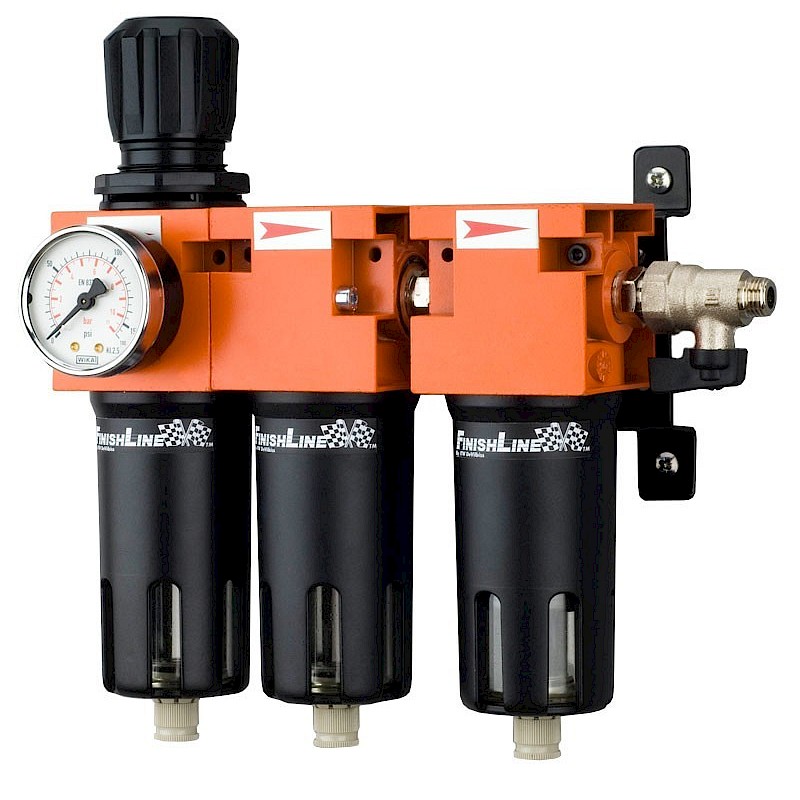

DeVilbiss FLRCAC-1 3 Stage Filter Regulator
SKU: DEVFLRCAC-1
Barcode: 5021845039333
£449.99
DeVilbiss FLRCAC-1 Complete Triple Stage Breathing Air Filter Regulator Assembly This competitive filter regulator is the ideal partner to your air fed mask. With air filtration down to 0.01 microns and activated carbon removing contaminants down to 0.003 ppm for both breathing and spraying. It is designed to remove entrained dirt, liquid, oil and water from flowing compressed air. The self-locking regulator together with the clear analogue gauge provides accurate air pressure control. It is supplied with a wall mounted bracket and ball valve controlled air outlet. Technical Specifications Air Inlet Connection 3/8” BSP Female Air Outlet Connection ¼” BSP Male connection with ball valve Gauge Range 0-11 bar (0-160psi) Width: 230mm Height: 238mm Weight: 3250g Maximum Air Flow: 25 cfm Air Supply Pressure: 18 bar Regulated Air Pressure: 8 bar Maximum Operating Temperature: 50 °C (not suitable for low bake booths/ovens) Main Filtration: 0.01 micron Final Filtration: Activated Carbon 0.003 ppm (odour removal) Drain: Semi-Automatic 3 Stage Filter Consists of: 9450102: First stage, replacement filter element XA12: Second stage, replacement coalescing filter element AC12: Final stage, activated carbon replacement filter element FLRCAC-1
- Product Overview: The DeVilbiss FLRCAC-1 Complete Triple Stage Breathing Air Filter Regulator Assembly is a high-performance filtration unit designed to deliver ultra-clean compressed air for use in automotive spray painting and air-fed respirator systems.
- Application: Ideal for use in professional automotive refinishing environments. Suitable for supplying clean air for both breathing and spraying. Not recommended for use in low bake ovens or high-temperature spray booths (maximum operating temperature 50°C).
- Filtration System: Triple stage system provides exceptional air purification:
- Stage 1: Pre-filter (part no. 9450102) removes water, oil, and particulates.
- Stage 2: Coalescing filter (part no. XA12) provides 0.01 micron filtration efficiency.
- Stage 3: Activated carbon filter (part no. AC12) eliminates odours and gaseous contaminants down to 0.003 ppm.
- Air Pressure Regulation: Self-locking regulator for stable and accurate air pressure control. Analogue gauge displays 0–11 bar (0–160 psi).
- Air Flow Capacity: Maximum air flow of 25 CFM (cubic feet per minute).
- Operating Pressure: Regulated output pressure of 8 bar; maximum allowable input pressure of 18 bar.
- Connections:
- Air Inlet: 3/8" BSP Female
- Air Outlet: 1/4" BSP Male with ball valve control
- Physical Dimensions:
- Width: 230 mm
- Height: 238 mm
- Weight: 3250 g
- Mounting: Supplied with a wall-mounting bracket for secure installation.
- Drain Mechanism: Features a semi-automatic drain to discharge collected contaminants.
- Environmental & Safety Info: Ensure operating environment does not exceed 50°C. Not suitable for use in environments with flammable vapours or atmospheres, or in high-temperature curing booths.
- Maintenance: Replace filter elements as needed with designated parts: 9450102 (first stage), XA12 (second stage), and AC12 (final stage).
